The pallet exchange process is entirely automated. This automation ensures maximum efficiency and consistency, significantly reducing the need for manual operator intervention and enhancing workplace safety.
Automatic Pallet Exchanger
Side Pusher – Push & Pull System
Get in touch with our experts
Performance:
120 pallets/hour
Capacity:
2,200 lbs
Pallet size:
Up to 40″ x 48″
Control:
Managed by a PLC system

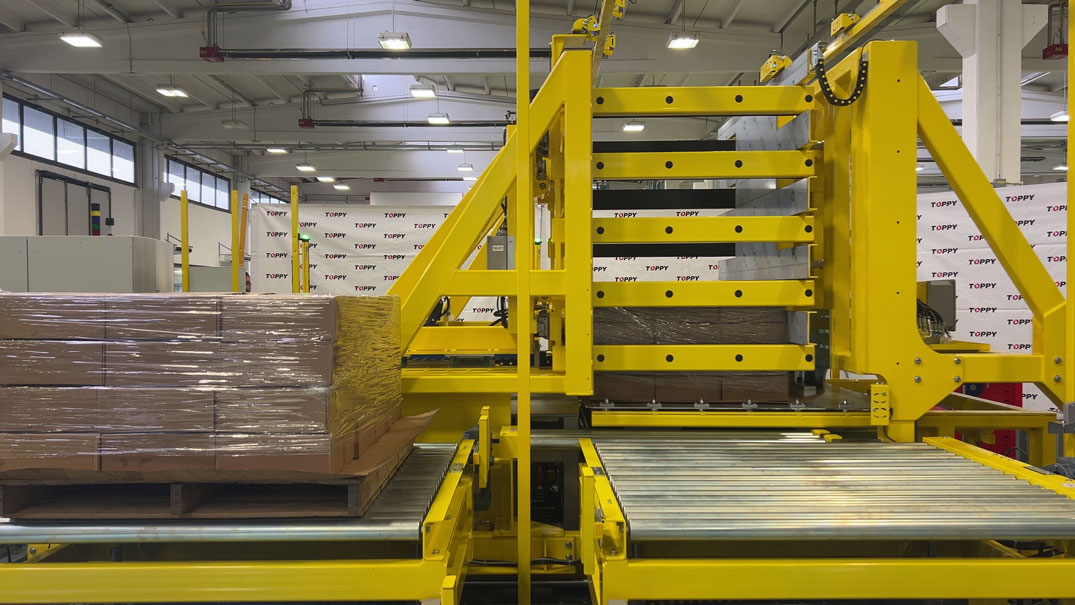

The Side Pusher Push & Pull system is an automated pallet exchanger designed to transfer goods from a Palletless system to any pallet (or vice versa).
This automatic system is a major upgrade over the traditional Push and Pull attachment used on forklifts. It makes transferring goods between pallets faster and more efficient, reducing the need for manual labor and improving workflow efficiency.
In the traditional method, operators must manually attach and engage the equipment to move loads from one pallet to another, which is both time-consuming and labor-intensive. The automatic system simplifies this process, offering more precision and minimizing the risk of errors and product damage.
Fully automatic operating cycle;
Up to 120 pallets per hour;
From slip sheet to wooden pallet
Features at a Glance
ruly one of a kind in speed and efficiency, this system is engineered to handle the most demanding production flows, managing up to 120 pallet changes per hour—making it the ideal solution for high-volume operations!

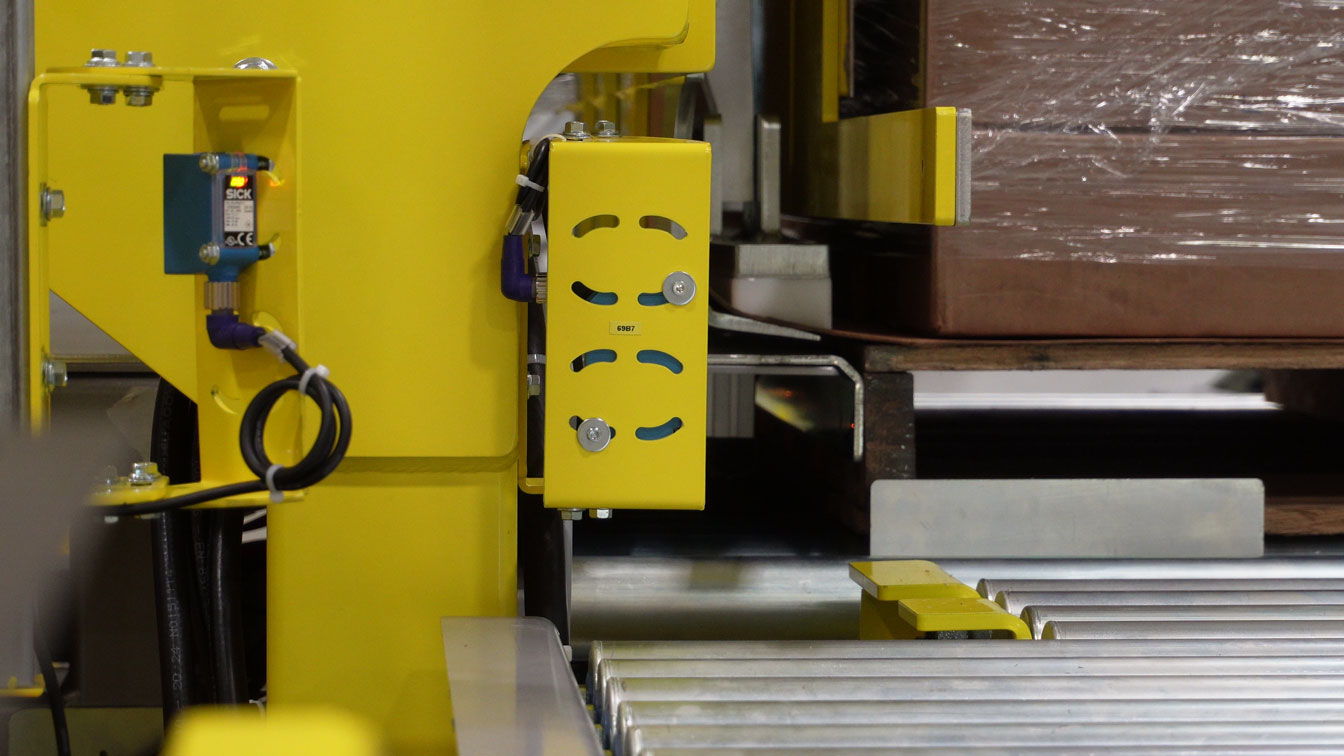

The Push & Pull System is specifically designed to assist with load transfer by gripping the slipsheet, ensuring that the load is transferred safely and efficiently from a pallet to a palletless system.
Soft neoprene foam padding on the fingers of the lateral pressers ensures that the product remains undamaged during lateral pressing, offering a secure and gentle handling process.
We customize our systems to meet specific project requirements, including factors such as conveyor height, existing machinery, pallet change rate, implementation area (inbound or outbound), product type, pallet specifications, and many other relevant details.
It safely handles both fragile and bulky loads, such as pharmaceutical vials, cans, drums, bottles, boxes, and more. Known for its versatility, it’s one of the most adaptable solutions in our range.
One of our greatest strengths: 100% Made in Italy, crafted in Bologna at our headquarters with top-quality Italian components. These ensure our machines are built to last, making us global industry leaders!
How does the pallet-changing cycle work?
As the machine activates, the pushing presser moves toward the product, and the two side pressers close once the product is reached. At the same time, the slip sheet is grabbed to pull the product, ensuring a smooth and secure transfer.
The stopping presser plays a crucial role in stabilizing the load as the blade is withdrawn, keeping everything in place for safe and accurate handling.
The slip sheet holder operates effectively, keeping the slip sheet in position throughout the process, whether transferring from wooden pallets to palletless loads or vice versa. The chain conveyor lifts the product into the machine, while the pressers ensure the product is moved securely to detach the pallet, leaving only the slip sheet.
Once the pallet is detached, the load is positioned on the metal blade, and the stopping presser stabilizes it while the blade withdraws. As the cycle continues, the chain conveyor lifts to return the load to the conveyor, all while the next load is already positioned for the next operation, ensuring minimal downtime.
Get in touch with our experts
FAT at our Headquarters in Italy
Frequently Asked Questions
How can I tell if this machine is right for my business?
If you need to transfer your loads from a slipsheet to a pallet or vice versa, this solution is the fastest pallet changer you can find on the market for this operation.
However, if you’re not sure which machine is right for you, don’t worry.
Our product range includes a variety of models, and to identify the best solution for your needs, we begin by analyzing your products, the pallets you use, and most importantly, how many pallet changes you make per hour. With this information, we can quickly recommend the most efficient solution for your specific requirements.
What about after-sales service?
It’s one of our strengths. Our after-sales team is available 24/7.
For both mobile and fixed machines, we always offer an emergency spare parts kit. If additional parts are needed, we have a fully stocked inventory in Davie, Miami, and can ship what’s necessary within a few business days. In the case of a machine needing a repair, we have a team of talented technicians ready to be deployed. For automated solutions, we always schedule routine maintenance after the purchase to ensure everything is running smoothly.
How soon can I see ROI with a pallet changer?
The return is practically immediate from an ergonomic perspective. Just imagine – no more physical strain on operators, no injuries, and the pallet changing process is significantly sped up with automation.
Why Top Industries Inc?
Top Industries Inc offers the most advanced technologies not only in the USA but worldwide.
Our parent company and Italian manufacturer, Toppy, is the world-leading company for state-of-the-art pallet exchanging solutions. They have a great deal of experience since being established in 1978 and supplying over 20,000 units in more than 147 countries!
Can the machines be customized for specific application?
Customization and tailoring machine / system is our specialty. When it comes to fully automated lines, we always provide customized solutions for each unique case, as every production flow involves different needs.
