Fixed Pallet Inverter
“The Hands-Free”

Discover our newly fixed pallet inverter, the evolution of classic pallet inverters. It’s one of the most advanced solutions in TopIndustries’ range thanks to the new patented technology of pallet shifting. Discover it!

fixed pallet inverter

Fixed pallet inverter

This solution is part of the pallet inverter family.

This innovative machine is perfect for heavy-duty usage as it can take loads as high as 3300 lbs. It is technologically advanced and can accommodate pallets with heights up to 83 inches, which pretty much covers most types.

The main advantage of this inverter over the other types is the speed. The production speed of 50 pallets per hour makes this inverter far superior to others. The manual version can be used ‘hands-free” with the help of a button panel. On the other hand, PLC technology is used in the automatic versions.

Due to its speed and customizing features, this inverter can be deployed across a wide range of industrial sectors like food, ceramics, pharmaceuticals, beverages, and many more. Our fixed pallet inverter offers the perfect solutions to industries that are having issues with overturning their products.

Cycle Description

The steps are pretty straightforward. With just a push of a few buttons on the panel, the operator will be able to invert the pallets with ease. This process can be repeated up to 50 times an hour, which is a significant increase in efficiency and productivity.

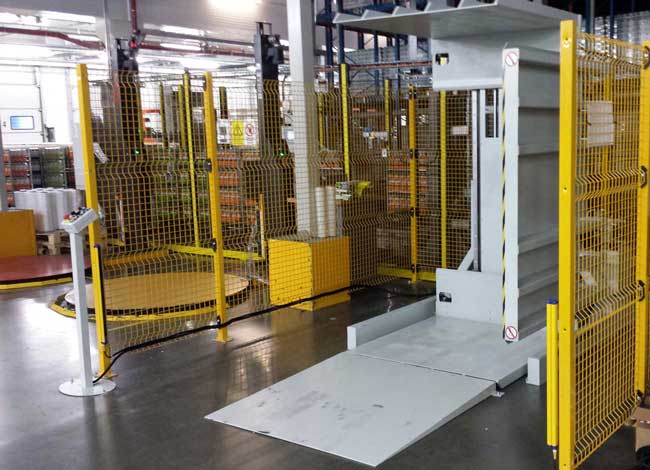

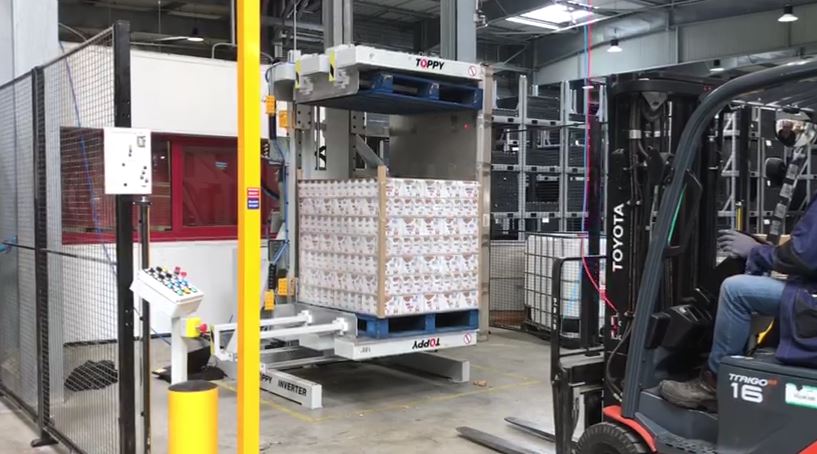

The cycle starts by placing the loaded pallets on the bottom platform of the machine. A forklift is used for placing the pallet loads. Now the panel buttons are used to tightly secure the pallet load from all sides.

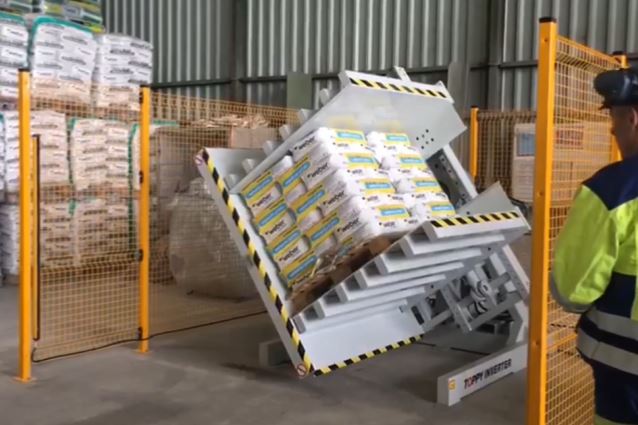

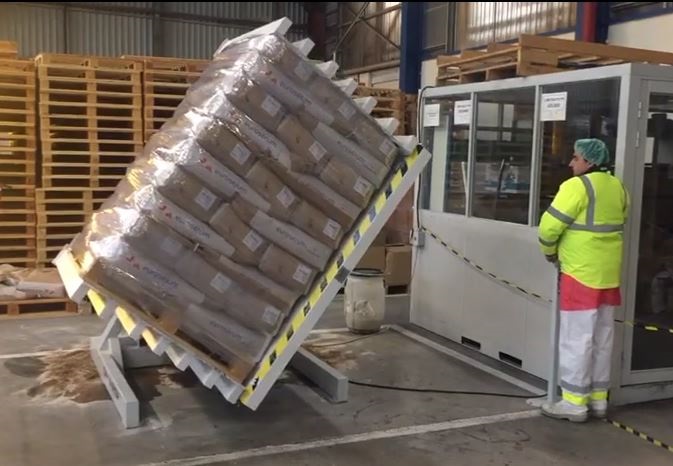

The inverter starts rotating, and when it reaches close to 120° (up to 180°, depending on the stability of the product), the load will start turning upside down. Now the platform of the load side is dropped to initiate the separation of the load from the original pallet. The space is created to slide the new target pallet. The aim is to transfer the load to this new pallet and remove the old one.

At this point, the new pallet is successfully positioned to replace the original one. The process cycle is completed by rotating the whole load back to the 0° position. Now the forklift is used to remove the load and make the platform ready for the next pallet-changing task.

Versatile mode

The process is even faster on a few loads like cartons or boxes. The machine need not be inverted to 120° as the space between the load and the pallet is created with lesser rotation. It helps in further increasing efficiency and speed.

If you are looking for automatic pallet handling solutions, you have reached the right place. We at TopIndustries Inc also design customized automatic inverters with the capacity to change even 100 pallets in an hour. Please feel free to contact us today for the best solutions!

Alternatevely, would you like a fully automatic solution?

We also design customized fully automatic pallet exchanging stystems capable of managing up to 100 pallet per hour. Do not hesitate to contact us for an advice!
