This is the newly Inline Pallet Inverter that allows to change 100 pallets per hour. It represents a distinctive fusion of pallet transfer systems with an innovative pallet swapping method, enabling the complete automation of the pallet exchange process.

Inline Pallet Inverter

Cycle Description of Inline Pallet Inverter

This solution, part of the pallet inverter family, is capable of exchanging various types of pallets and loads. Let’s take a look at how the exchanging cycle works for wooden and plastic pallets:

  1. Place the loads on the floor of the inverters or on the conveyer belts to be moved to the inverter platform.
  2. Position the new target pallet next to or adjacent to the original pallet load.
  3. Securely lock the original and new pallets to the platform. The ‘L-SHAPE APS’ will then start tipping the load along with the adjacent new pallet. The degree of inverting will depend on the types of products in the load.
  4. Once the tipping creates space between the load and the original pallet, the machine will slide the new pallet, and push out the original one.
  5. The new plastic pallet will have successfully replaced the original wooden one. The inverter will tip the load back to the original position, this time with the new plastic pallet.
  6. The conveyer belt will move the pallet to the forklift or for the next operation.
  7. Another robot will pick up the original wooden pallets for stacking.
  8. The cycle is now complete and can be repeated up to 100 times in an hour.

It could be equipped with roller conveyors, slip sheet dispenser, pallet stackers, labeling machine, film cutting station, load centering device, and many others advanced solutions.

What is an inline pallet inverter?

An inline pallet inverter is a material handling equipment used for transferring loads from one pallet to another without the need for manual labor. It is specifically designed for warehouses and distribution centers with a high volume of pallets that need to be transferred efficiently and with minimal labor costs

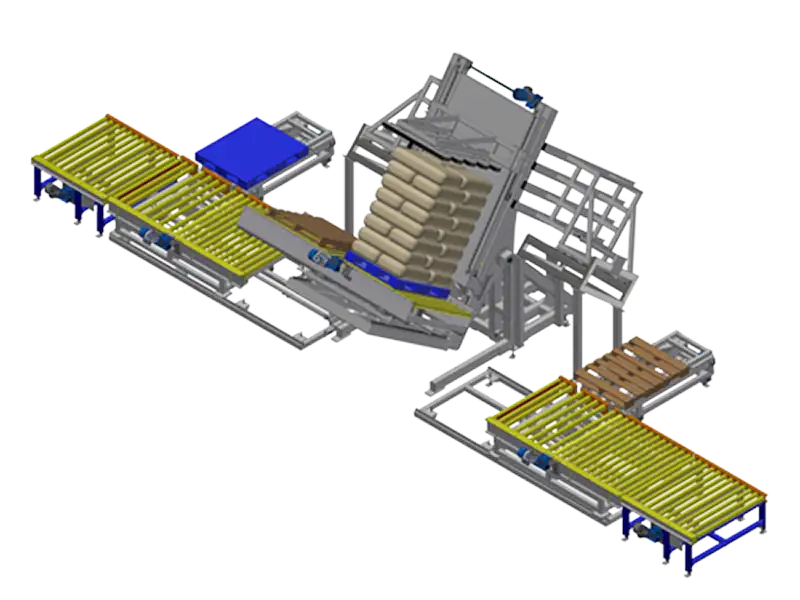

High-capacity inline pallet inverter

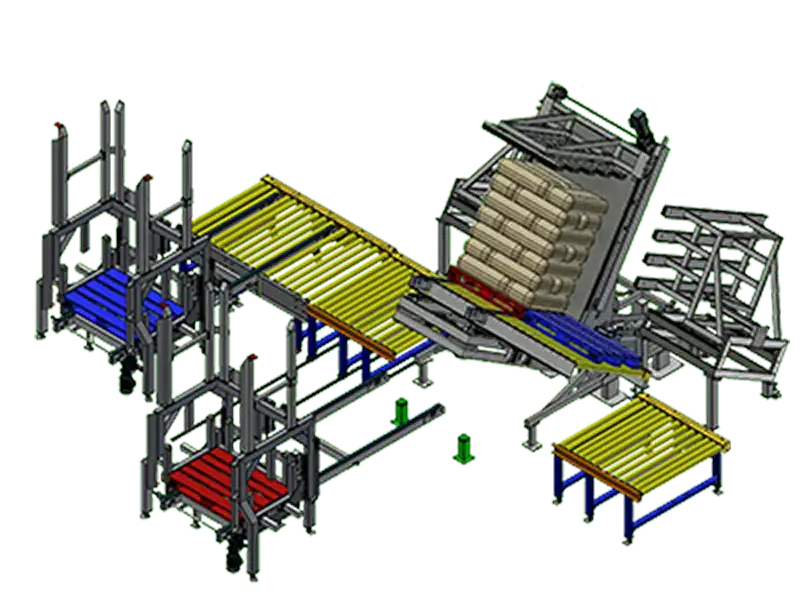

Inline pallet inverter in action

How does an inline pallet inverter work?

An inline pallet inverter works by clamping onto the sides of the pallet load and then rotating it 180 degrees. This process is done automatically by the machine, and the load is then placed onto the new pallet. The entire process is done quickly and efficiently, ensuring that the pallets are transferred with minimal disruption to the workflow.

Why choose an inline pallet inverter from Top Industries?

At Top Industries, we pride ourselves on providing cutting-edge automation solutions that are designed to meet the demands of modern-day warehouses and distribution centers. Our inline pallet inverters are fully automated and can handle up to 100 pallets per hour, ensuring that your operations run smoothly and efficiently.

What are the benefits of using an inline pallet inverter?

Using an inline pallet inverter from Top Industries comes with several benefits, including:

 1. Increased efficiency: With a fully automated system, you can transfer pallets quickly and efficiently without the need for manual labor.

2. Reduced labor costs: With fewer manual labor requirements, you can save on labor costs and allocate your resources more effectively.

3.  Improved safety: An inline pallet inverter reduces the risk of workplace injuries associated with manual pallet handling.

4.  Better load stability: The clamping mechanism of the pallet inverter ensures that the load remains stable during the transfer process, reducing the risk of damage.

Inline pallet inverter for safe handling

What are the features of Top Industries’ inline pallet inverters?

Top Industries’ inline pallet inverters come with several features designed to improve the efficiency and effectiveness of your operations, including:

1. Automated controls: Our pallet inverters are fully automated, allowing for quick and efficient transfers.

2. High capacity: Our machines can handle up to 100 pallets per hour, ensuring that your operations run smoothly and efficiently.

3. Versatility: Our pallet inverters are designed to handle a wide range of load sizes and types, making them ideal for a variety of applications.

Versatile inline pallet inverter

How do Top Industries’ inline pallet inverters compare to other solutions on the market?

Top Industries’ inline pallet inverters are some of the most advanced solutions on the market, providing superior automation capabilities and increased efficiency compared to traditional manual handling methods. Our machines are designed to handle a wide range of loads and can transfer pallets quickly and efficiently, ensuring that your operations run smoothly and with minimal disruption.

What industries can benefit from using Top Industries’ inline pallet inverters?

Top Industries’ inline pallet inverters are ideal for a range of industries, including warehousing, distribution, manufacturing, and logistics. Any industry that deals with a high volume of pallets and requires quick and efficient transfer solutions can benefit from using our pallet inverters.

Conclusion

In conclusion, Top Industries‘ inline pallet inverters are a superior solution for any business looking to improve the efficiency and effectiveness of their operations. With fully automated controls and the ability to handle up to 100 pallets per hour, our machines provide superior automation capabilities compared to traditional manual handling methods. If you are looking for a reliable and efficient solution for pallet transfers, consider Top Industries’ inline pallet inverters.
