Portable Pallet Inverter
“The Original Turner-3300”

“Turner 3300” is the original portable pallet inverter capable of handling up to 20 pallets per hour. This mobile pallet inverter is an extremely versatile and compact solution that changes the pallet by safely tipping the load allowing a reduction of manual labour.

Portable Pallet Inverter

This solution is part of the pallet inverter family.

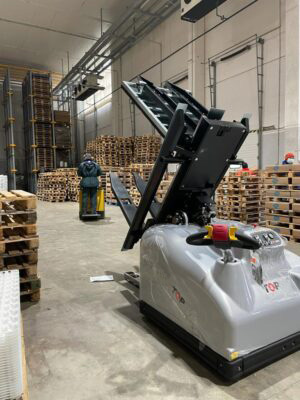

Turner 3300 is an electric-powered mobile pallet inverter that is capable of handling loads up to 3300 lbs. it has a gel battery to power the pallet tipping operations. The control panel is easy to operate, and its portability feature makes it suitable for use in warehouses of all sizes.

Turner 3300 is ideal for use even in small and confined warehouses that do not have designated spots for pallet-changing operations. The gel battery is good enough to run the operations for an entire day on a single charge.

We at TopIndustries Inc can also upgrade the mobile pallet inverter with bigger batteries as per the custom requirements of our clients. It also has the roll-on / roll-off feature to automate the repetition of cycles for non-stop operation.

Fragile products? Discover our pallet changers!

However, this inverter system might not be suitable for a few delicate products and they could get damaged during the inversion process. Not to worry, we have TopIndustries also offer sideways pallet changer systems. Please feel free to talk to us about the best pallet-handling solutions for your custom requirements.

Cycle Description

The original pallets are replaced by the new ones by overturning the load.

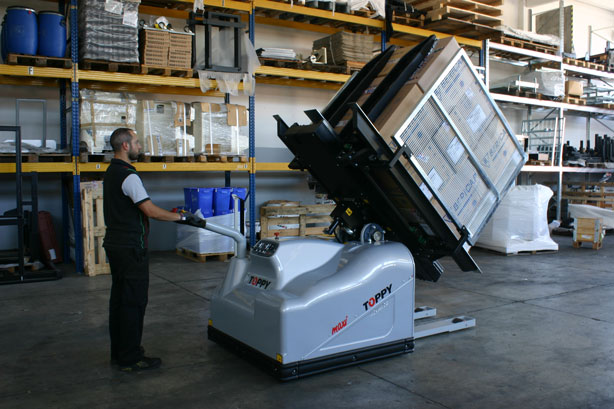

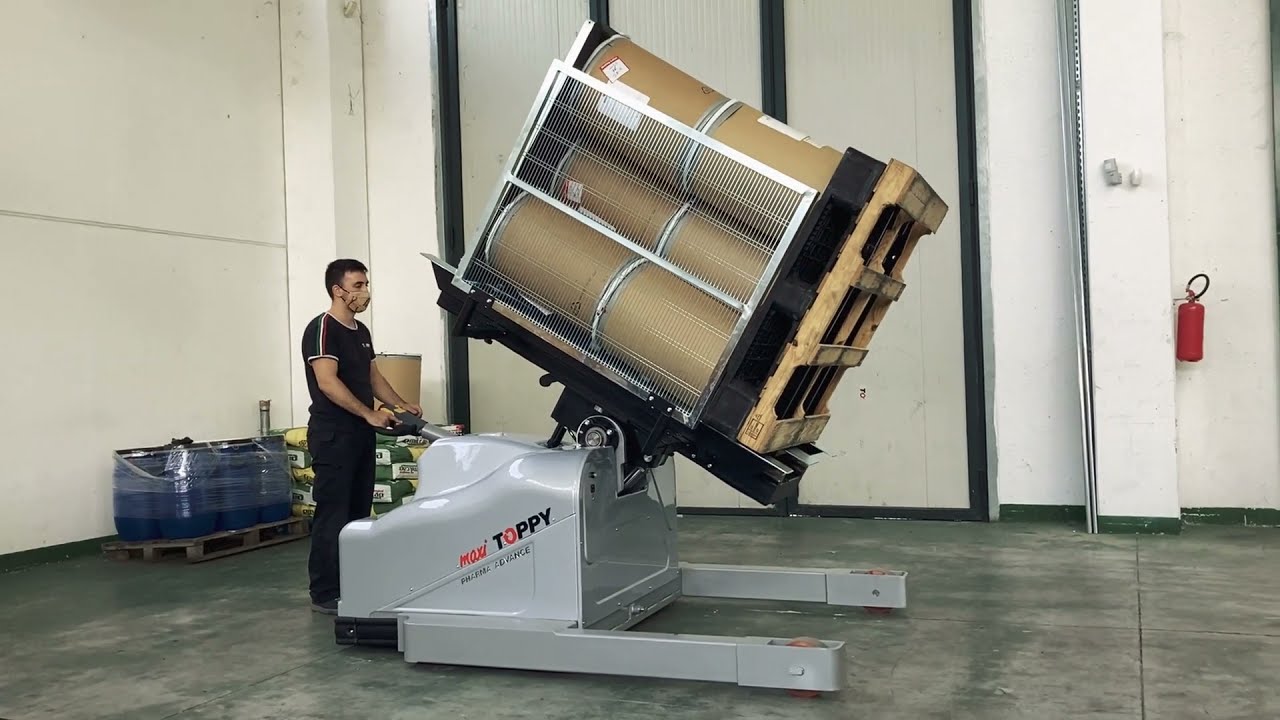

The Pallet load is inverted to 180° with the new pallet on top of the load. The pallet load is secured by the forks and side panels to enable the safe rotation of loads. Now the original pallet comes on the top of the load and the new pallet gets secured at the bottom. The product load will also get inverted in this method.

Another way is to invert the pallet load by 90°. Now the platform is manually turned to 180° by the operator. Now the whole load is inverted again by 90°. The load will now rest on the platform. The pallet is then lifted upwards to create the space to slide in a new pallet.

Now the whole load platform is turned by 180°, and inverted again by 90°. This time the new pallet will be secured between the original pallet and the load. The forklift of this portable pallet inverter is then used to remove the new pallet load, and leave the original pallet behind. The cycle is completed when the original pallet load is successfully moved over to the new pallet or the destination pallet. Don’t forget to check out the demo videos below to see the working of the portable pallet inverter.

The operation of a portable pallet inverter is quite simple. With a little bit of training, your operator will be able to easily change up to 20 pallets every hour, all this with minimal use of labour.

Alternatively, would you like an automatic solution?

We also design customized fully automatic pallet exchanging stystems capable of managing up to 100 pallets per hour. Do not hesitate to contact us for an advice!
