With its compact design, Side Press Splitter can easily drive through narrow passages while handling layer-picking operations with ease.
Mobile Layer Picker
Side Press Splitter
Get in touch with our experts
Performance:
30 pallets/hour
Capacity:
2,200 lbs
Pallet size:
Up to 40″ x 48″
Lifting range:
Up to 55”

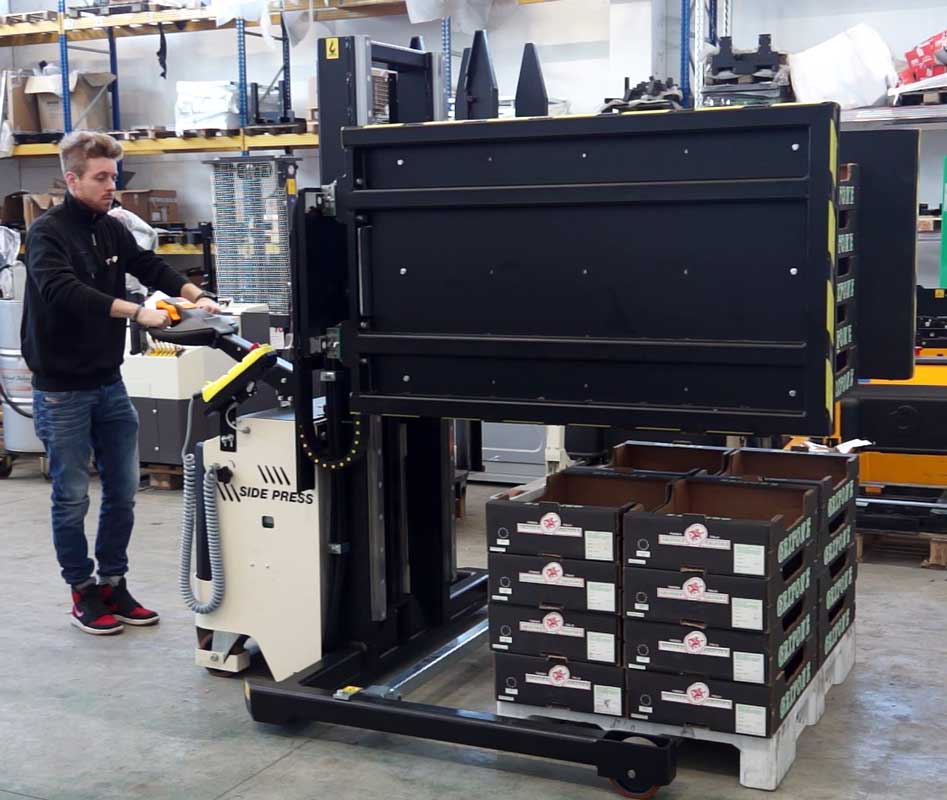

Side Press Splitter is an electric-powered, mobile pallet changer designed for both pallet exchange and layer separation from the load. It’s ideal for small warehouses without dedicated pallet-changing areas.
It’s an extremely versatile and compact solution that handle loads by side locking the product and lifting it from the pallet
Mobile and versatile machine;
With Adjustable Pressure;
Safe product handling;
Features at a Glance
Smooth and precise operation is possible thanks to the user-friendly controls, allowing operators of all skill levels to be productive with minimal practice.

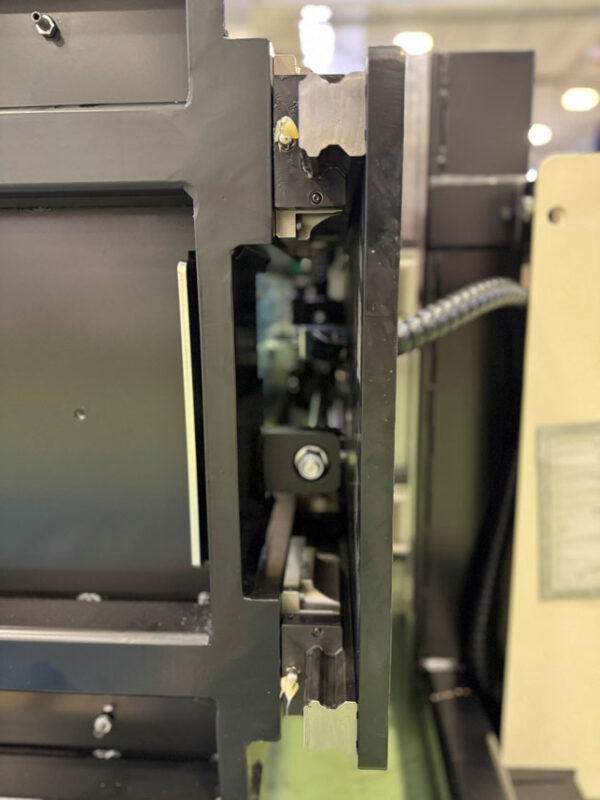

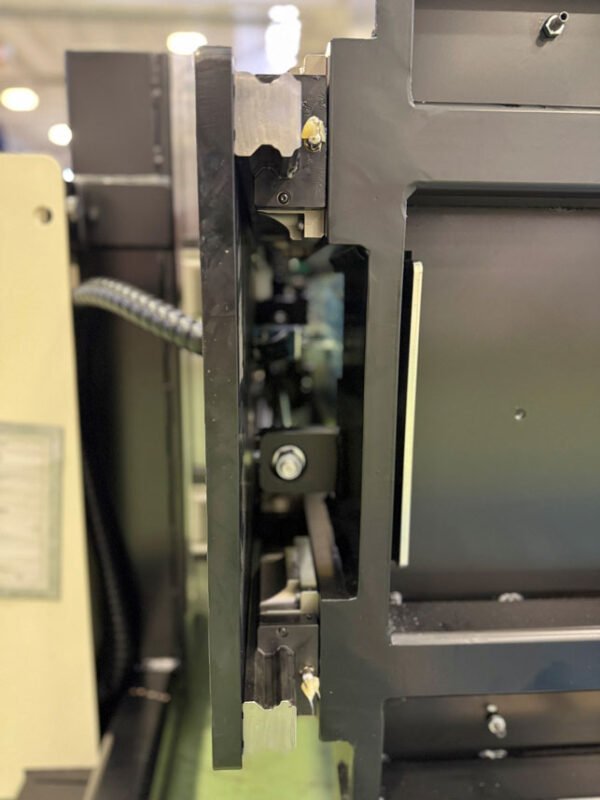

Maintenance time is minimized as it is only necessary to grease easily accessible points for both linear guides.

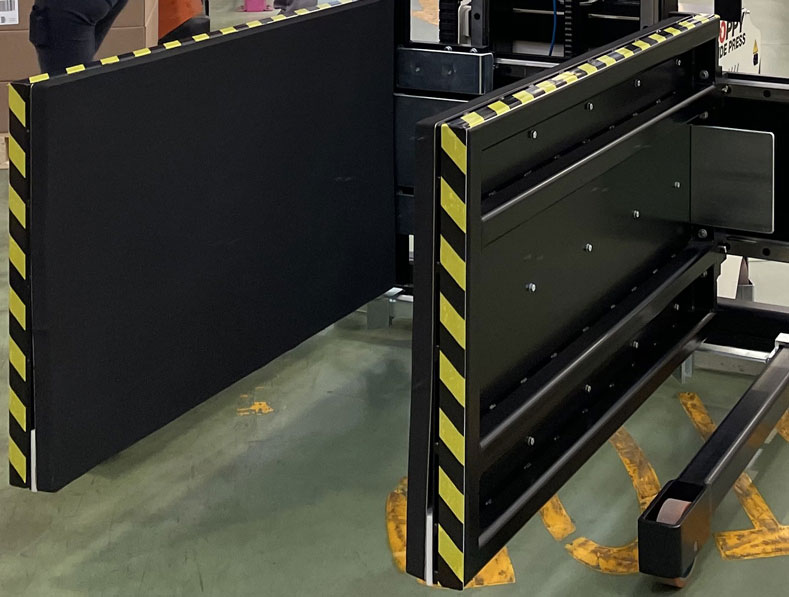

Soft rubbed padding on the clamps ensures that the product is not damaged during the lateral pressing, providing a secure and gentle handling process.

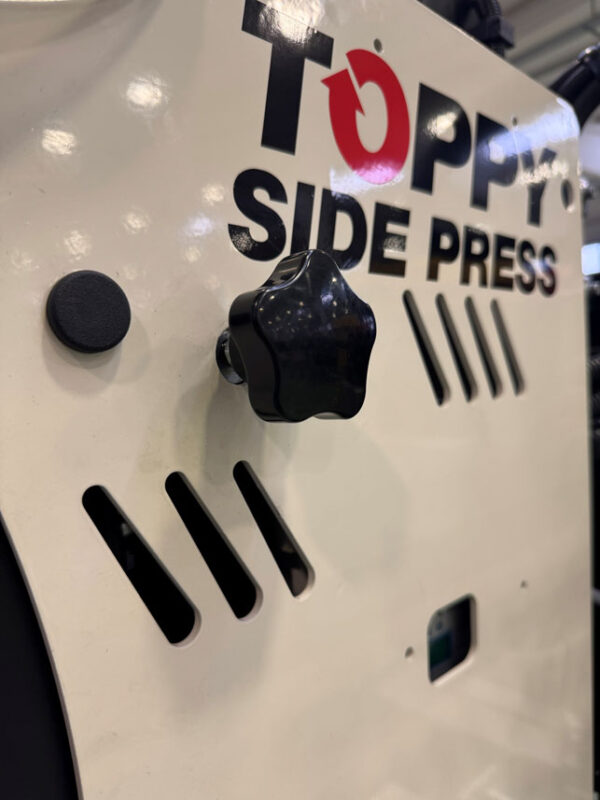

Through a manual pressure gauge located on the right side of the machine, it is possible to adjust the pressure as needed
Pallet Exchange & Layer Picking Cycle

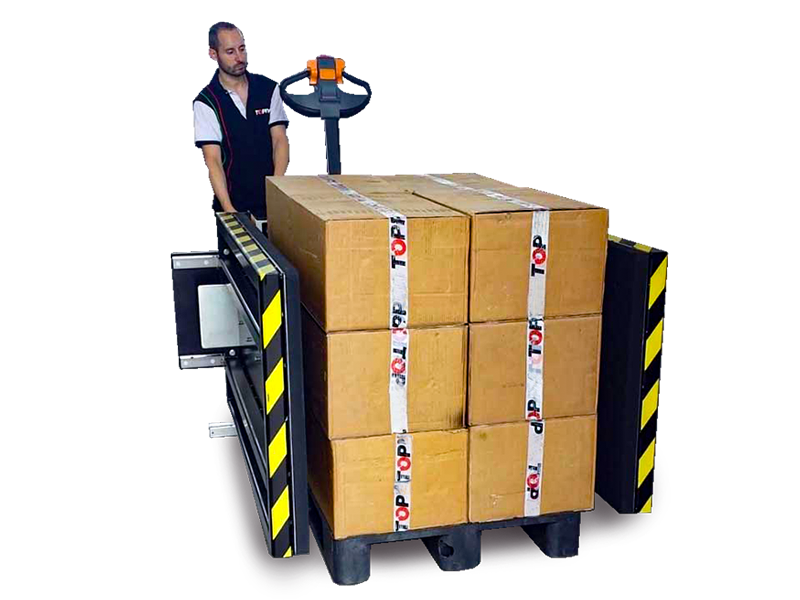

The operator positions the machine next to the load that needs to be transferred or split onto a new pallet. Once in place, the operator activates the two side platforms using the control panel to secure the product from the sides.
The side platforms are fitted with padded clamps to protect the product from any damage during lateral pressure. The pressure can be adjusted using a pressure gauge on the machine to accommodate the load’s specific characteristics.
Once the product is secured, the operator lifts it off the pallet and moves it to the new one. The load is then safely placed onto the new pallet.
The pallet exchange process ends with the secure placement of the load on the new pallet.
Get in touch with our experts

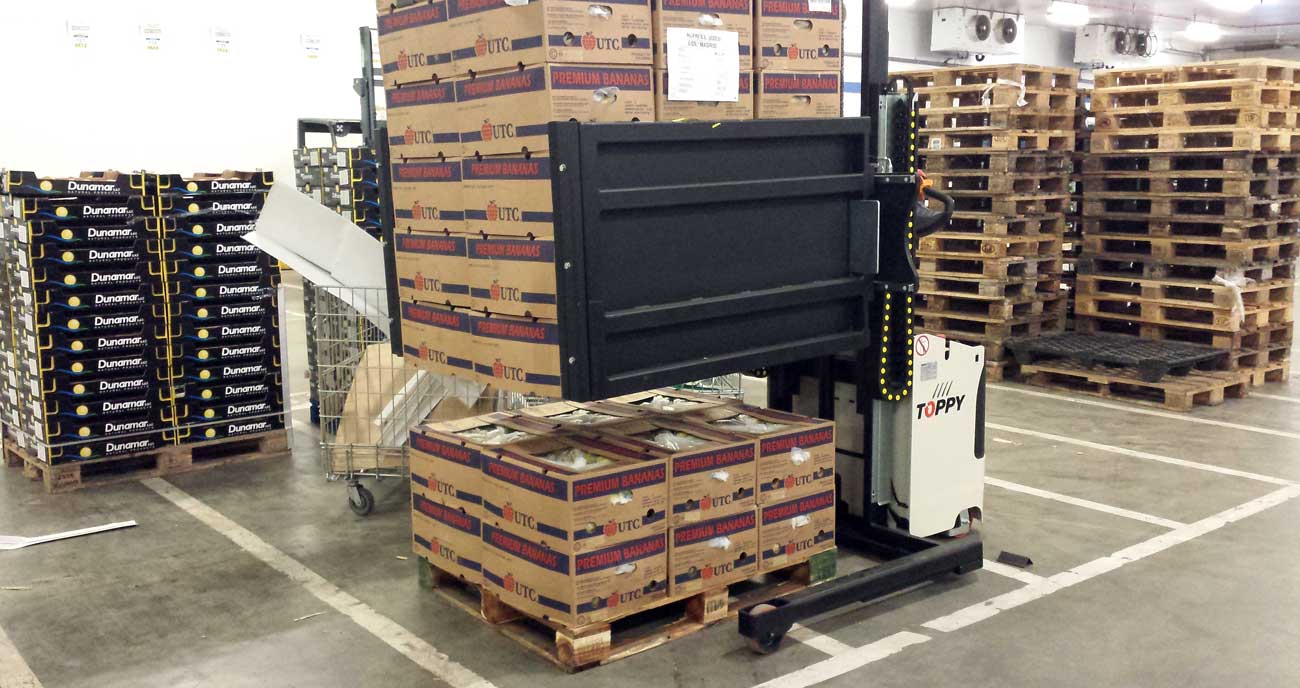

Installations at our customers’ site
Frequently Asked Questions
How can I tell if this machine is right for my business?
This solution is designed for customers who need to change pallets and simultaneously separate product stacks.
Our product range includes a variety of models, and to identify the best solution for your needs, we begin by analyzing your products, the pallets you use, and most importantly, how many pallet changes you make per hour. With this information, we can quickly recommend the most efficient solution for your specific requirements.
What about after-sales service?
It’s one of our strengths. Our after-sales team is available 24/7.
For both mobile and fixed machines, we always offer an emergency spare parts kit. If additional parts are needed, we have a fully stocked inventory in Davie, Miami, and can ship what’s necessary within a few business days. In the case of a machine needing a repair, we have a team of talented technicians ready to be deployed. For automated solutions, we always schedule routine maintenance after the purchase to ensure everything is running smoothly.
How soon can I see ROI with a pallet changer?
The return is practically immediate from an ergonomic perspective. Just imagine – no more physical strain on operators, no injuries, and the pallet changing process is significantly sped up with automation.
Why Top Industries Inc?
Top Industries Inc offers the most advanced technologies not only in the USA but worldwide.
Our parent company and Italian manufacturer, Toppy, is the world-leading company for state-of-the-art pallet exchanging solutions. They have a great deal of experience since being established in 1978 and supplying over 20,000 units in more than 147 countries!
Can the machines be customized for specific application?
Customization and tailoring machine / system is our specialty. When it comes to fully automated lines, we always provide customized solutions for each unique case, as every production flow involves different needs.
